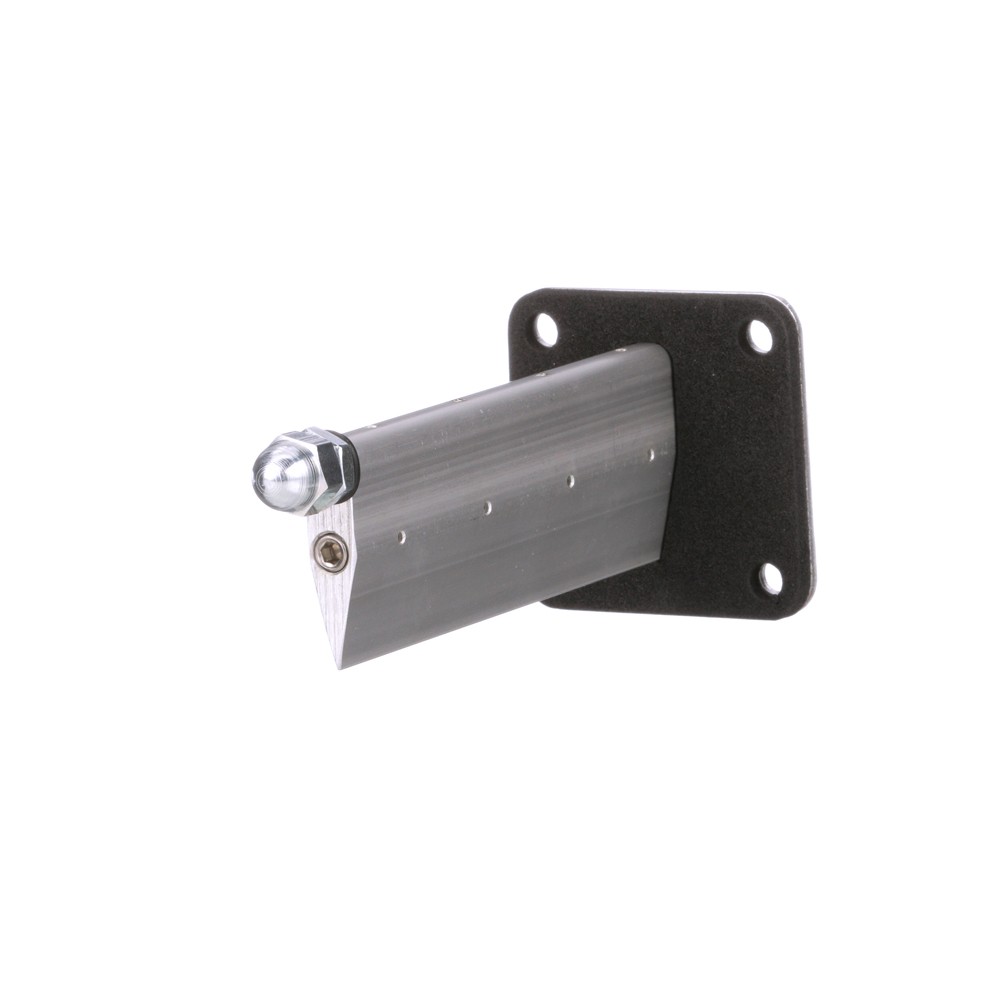

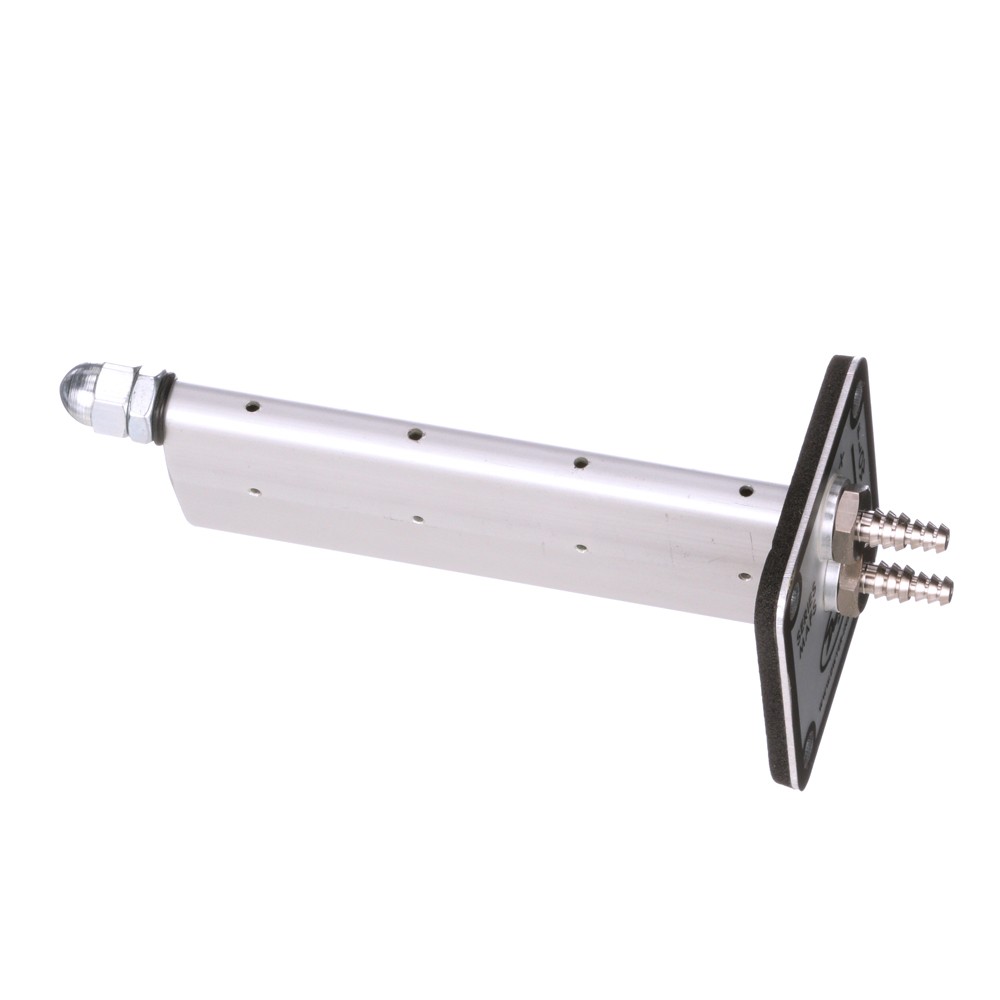

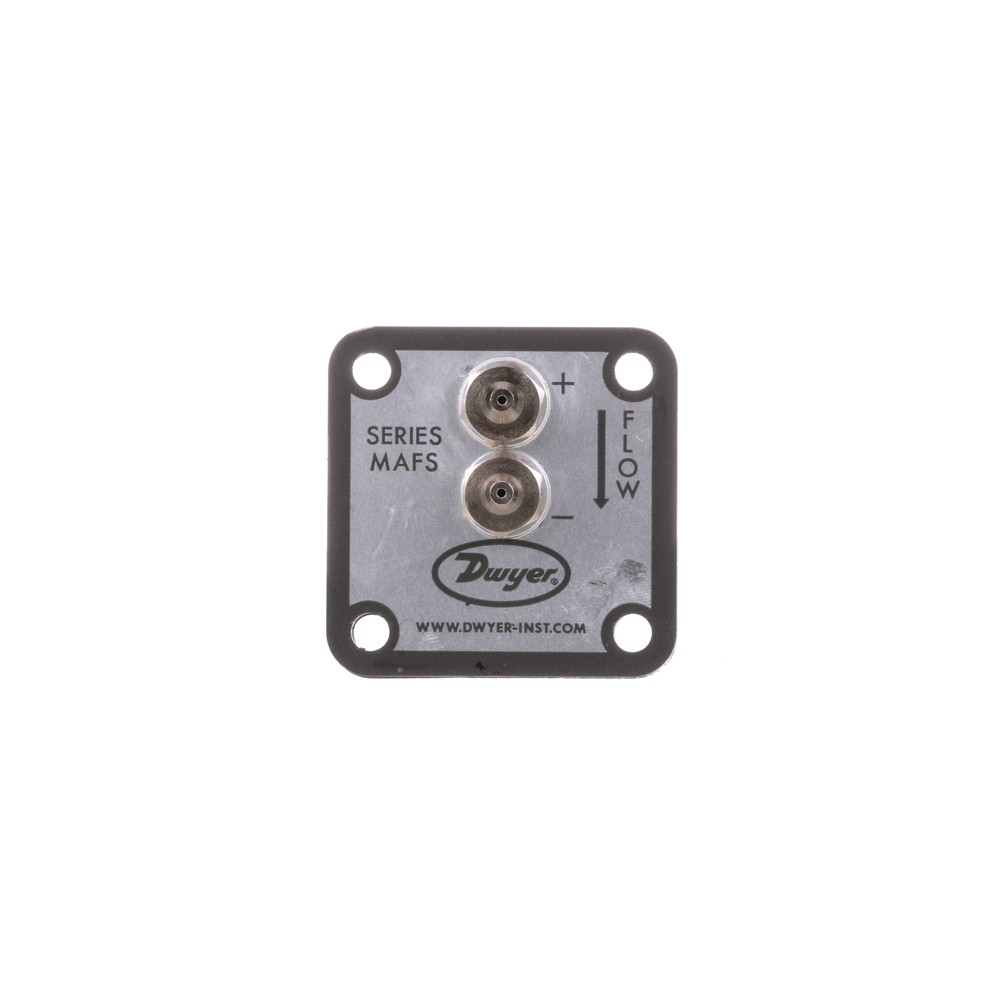

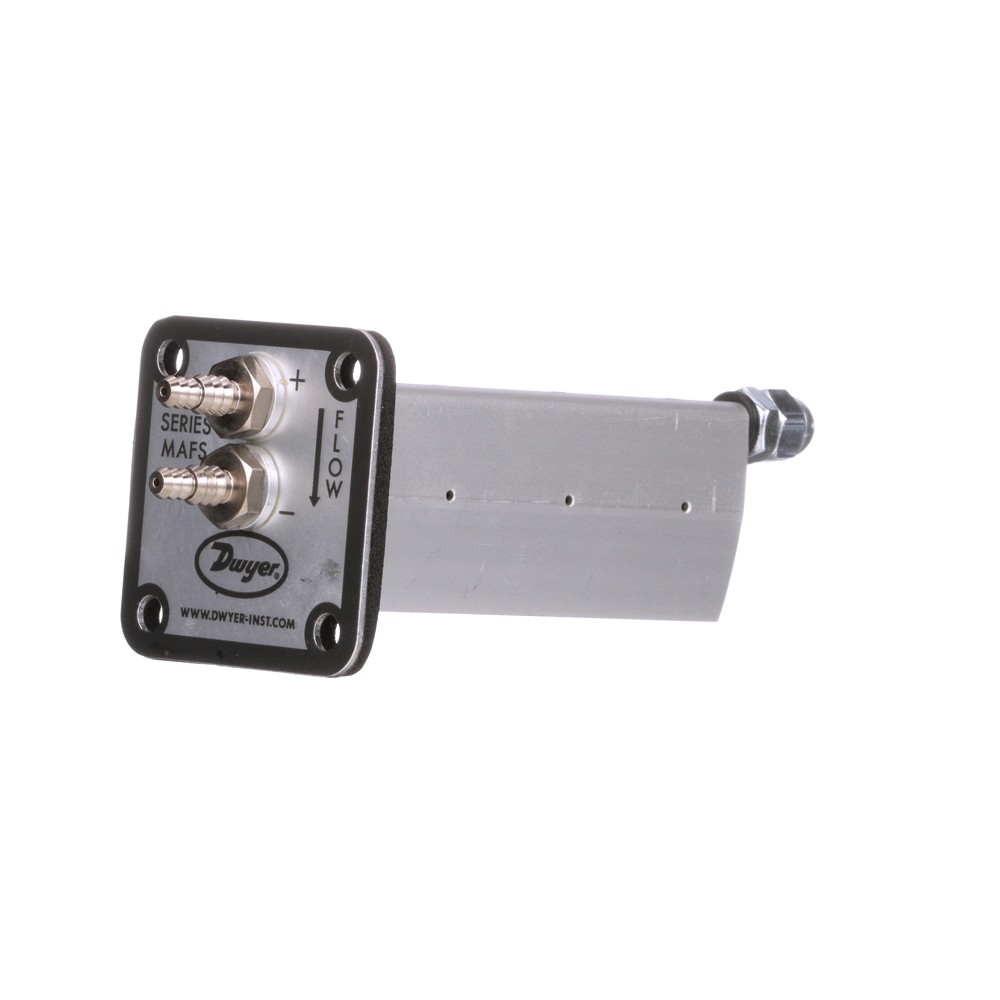

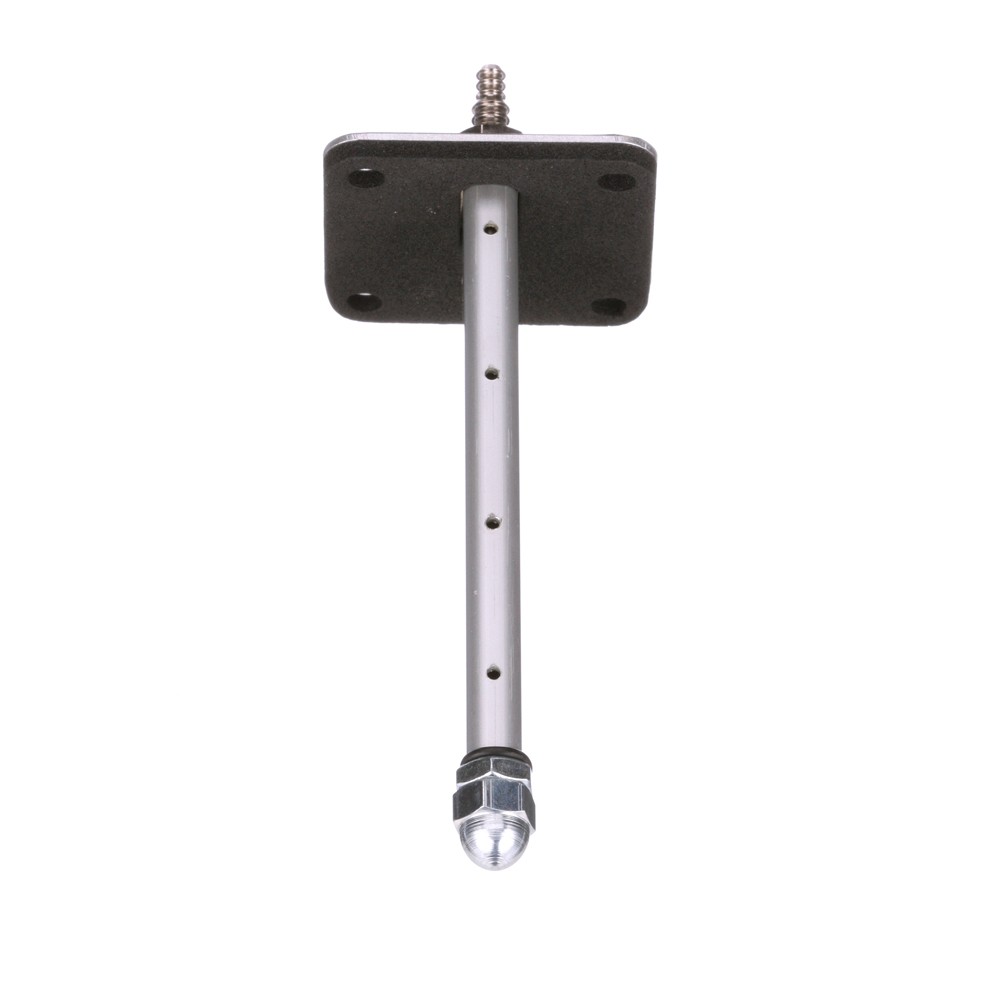

Dwyer 平均風速傳感器 MAFS系列

Blade Profile Provides Enhanced Performance and Minimal Flow Disruption

MAFS系列金屬平均流量傳感器非常適合與Dwyer Instruments, Inc.精密風速計，變送器和開關一起使用。MAFS系列采用均勻分布的總壓力和靜壓測量點，可以準確測量管道內的速度壓力。

應用及案例

● VAV air flow measurement

● Fume hood exhaust flow verification

● HVAC retrofit air flow measurement

產品特色技術指標選項配件安裝手冊機構認證尺寸詳圖產品大圖型號列表訂貨選型

產品特色

● Blade design limits disruption of air stream

● Lightweight aluminum construction

● Flange mount for rectangular or square ducts

Service:Clean air.

Wetted Materials:Aluminum AA6063.

Accuracy:400 to 9000 FPM (45.7 m/s): ±2% FS; ±3% FS for 6" and 48" length models.

K-Factor:0.81, 0.80 for 6" (160 mm) and 48" (1200 mm) lengths, 4" (100 mm) length=0.82.

Max. Temperature:400°F (204°C); Gasket: -31 to 230°F (-35 to 110°C).

Minimum Design Flow:400 fpm (2 m/s).

Maximum Design Flow:12,000 fpm (60.91 m/s).

Process Connections:Dual barb for 3/16" or 1/4" ID tubing.

Straight Run Requirements:5 diameters or longest side dimensions.

Agency Approvals:Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
